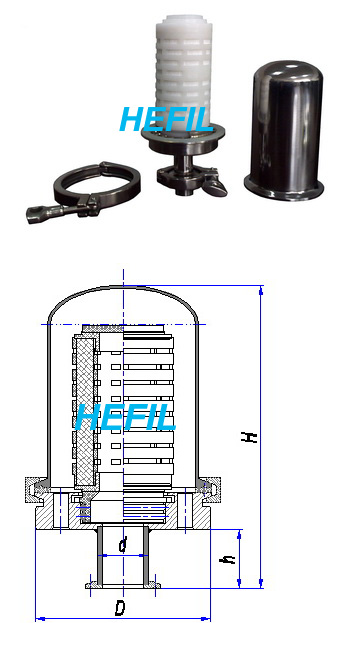

Dimension ans Size

VC(m3/h)

Type

Connection pipe

Size (mm)

Unit weight(kg)

DN

Pipe d (mm)

Connection type

Neck height h

Shell D

Overall height H

65

HFC-0105F-25

25

Φ32×2.5

Flange25-1.0

50

Φ102

220

2.2

HFC-0105C-25

Clamp DN25

1.5

HFC-0105S-25

Male Thread G1"

1.2

130

HFC-0110F-40

40

Φ45×2.5

Flange40-1.0

350

3.7

HFC-0110C-40

Clamp DN40

2.5

HFC-0110S-40

Male Thread G1?"

1.9

400

HFC-0310F-50

50

Φ57×3

Flange 50-1.0

80

Φ200

465

14.3

HFC-0310C-50

Clamp DN50

13.0

HFC-0310S-50

Male Thread G2"

12.3

Shell material		Stainless steel 304, 316, 316L
Filter core connection type		226 (snap-in type)
Pipeline connection type	Clamp	Supply the outer plug
	Flange	HG20593-1997; PN1.0~1.6MPa
	Threading	British pipe thread
Pressure		0.3MPa, 0.8MPa
Filtering fineness		0.01μm, 0.1μm, 0.22μm, 0.45μm
Filtering effect		99.999%

HFC Air convection filter outer shell is stainless steel 304,316,316L.

◆HFC air convection filter is apply to installed on the ventilating outlet of different liquid reservoir, pure water tank and germ free drying box to prevent from expiring and inspiring the air because of the changed liquid level or polluting by dust and germ in the air when expiring and inspiring the air in the germ free drying box.
