HACD Activated Carbon Pocket Filter
Position:Home > Products > Chemical Filters > HACD Activated Carbon Pocket Filter- HACD Activated Carbon Pocket Filter Media: activated carbon fiber and non-woven composite
- Submit Order
Frame: galvanized plate, aluminum alloy sheet, ABS plastic, stainless steel sheet
SpecificationFeatures

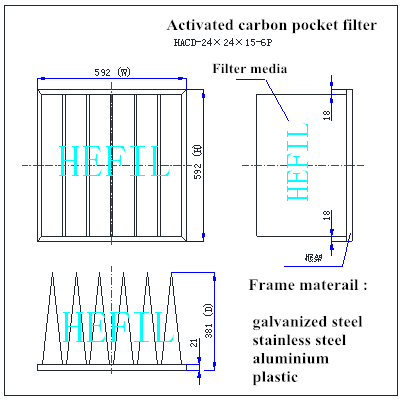

Frame structureApplication
Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) @ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F5 | |||
HACD-24×24×14-6P | 592×592×381 | 6 | 3.3 | 31@3400 | 49@3400 | 84@3400 |
HACD-20×24×14-5P | 490×592×381 | 5 | 2.7 | 31@2900 | 49@2900 | 84@2900 |
HACD-12×24×14-3P | 287×592×381 | 3 | 1.6 | 31@1700 | 49@1700 | 84@1700 |
HACD-24×24×22-6P | 592×592×558 | 6 | 4.6 | 22@3400 | 35@3800 | 60@3400 |
HACD-20×24×22-5P | 490×592×558 | 5 | 4.1 | 22@2900 | 35@3200 | 60@2900 |
HACD-12×24×22-3P | 287×592×558 | 3 | 2.3 | 22@1700 | 35@1900 | 60@1700 |
HEFIL makes various other models of HACD filter not listed the above table. Please consult with us if you need.
◆Filtration efficiency rating G3~F5 is available for selection
◆Made of polyester non-woven soaked in activated charcoal, enhanced with non-woven composite, effectively remove a variety of odors in the air
◆Reliable performance with high adsorption capacity and removal efficiency
◆Great versatility, easy installation and maintenance
◆The filter can be with the frame made up of aluminum alloy, galvanized steel, stainless steel or plastic
◆Made of polyester non-woven soaked in activated charcoal, enhanced with non-woven composite, effectively remove a variety of odors in the air
◆Reliable performance with high adsorption capacity and removal efficiency
◆Great versatility, easy installation and maintenance
◆The filter can be with the frame made up of aluminum alloy, galvanized steel, stainless steel or plastic
◆The filter can be with the frame made up of aluminum alloy, galvanized steel, stainless steel or plastic
◆Apply to a variety of air conditioning and ventilation systems. It is a dust collector and deodorizing filter. Improves the quality of indoor air effectively.
