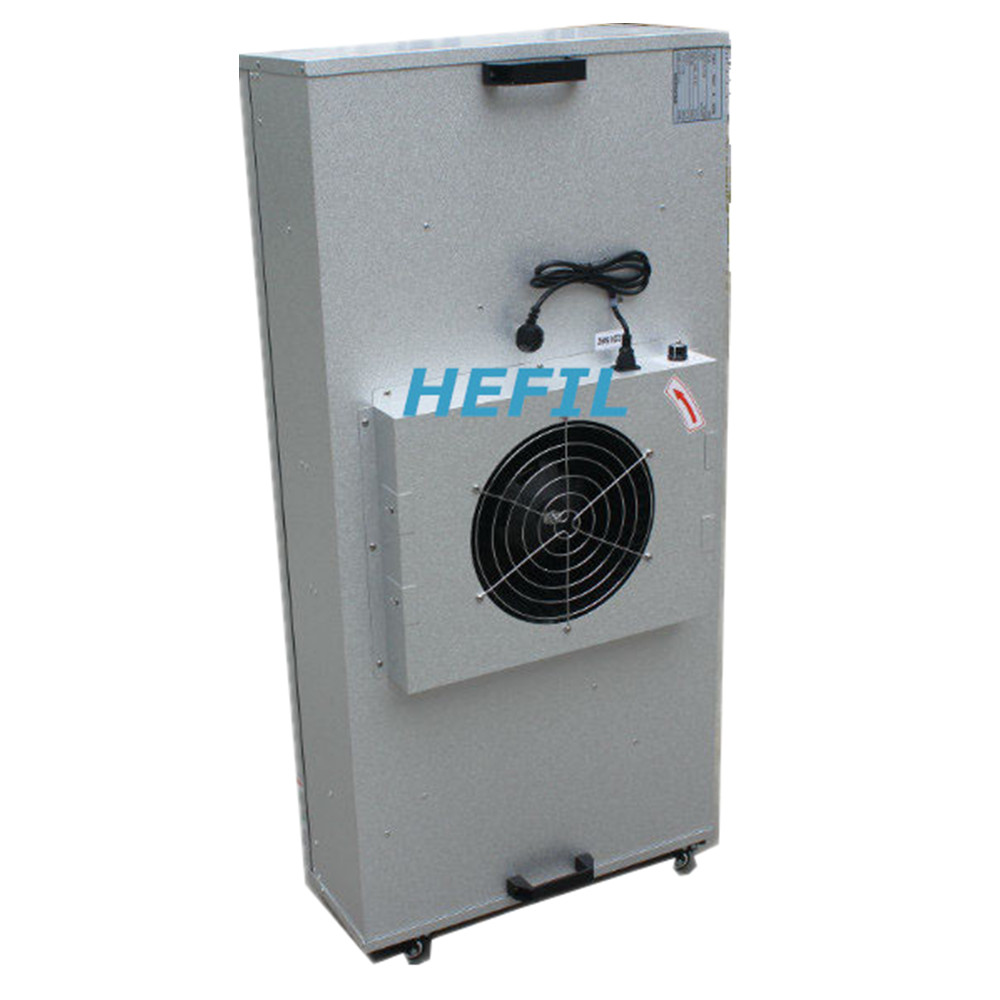

HFU - FFU air purifier

Technical features:

1.Length of the cable:1.5m, energy efficiency rating:1 Class

2.Mediacal grade HEPA:Class100

3.Air flow: low, middle and high level

4.Motor type: AC

5.Pre filter: to filter bigger particle, hair and so on

6.Carbon filter: to removing the odor and harmful gas

7.Filter PM2.5 ,don't make bacteria and remove odor, purifying air

8.Save energy and three class filter

9.HEPA filter size:1170*570*70mm

10.Anodised aluminium frame to make the frame free of dust under long time contact with air

11. Working condition: humidity≤80%,teperature ≤80°.

12.Guard mesh: double sides with metal mesh, high efficiency assembly to get the good and stable structure.

Submit Order
SpecificationFeatures Frame structureApplication


Model

FFU-HA24

Module Size (mm)

1175×575×270

Face Velocity (m/s)

Low

High

0.35

0.55

Noise (dB(A))

≤46

≤52

Power Supply

AC, 1-Ф220V/50Hz

Power Dissipation (W)

100~120

Host Weight (kg)

25

HEPA Efficiency

≥99.9999.999%@0.3μm

HEPA Size (mm)

1170×570×80/70

HEPA Wight (kg)

9.5

External Static Pressure (Pa)

98

Primary washable nylon filter

filter hair,floccule and bigger particle

carbon filter

carbon filter media ,T=3mm

HEPA filter

filter PM2.5

1. In case of specifications, structural changes, HEFIL will provide up-to-date data on website: www.hefilter.com

2. Hefil makes various other models of HFU filter not listed the above table.

1.Length of the cable:1.5m, energy efficiency rating:1 Class

2.Mediacal grade HEPA:Class100

3.Air flow: low, middle and high level

4.Motor type: AC

5.Pre filter: to filter bigger particle, hair and so on

6.Carbon filter: to removing the odor and harmful gas

7.Filter PM2.5 ,don't make bacteria and remove odor, purifying air

8.Save energy and three class filter

9.HEPA filter size:1170*570*70mm

10.Anodised aluminium frame to make the frame free of dust under long time contact with air

11. Working condition: humidity≤80%,teperature ≤80°.

12.Guard mesh: double sides with metal mesh, high efficiency assembly to get the good and stable structure.

Structure features:

1.       Box

Galvalume material; Power:100-120W; Motor insulation class: B Class;

Vibration coefficients: <0.5m/s2;Single noisy:52dB; Power supply: AC motor, 220V/50Hz,three speed control with diffuser

2.     Inner filters

Primary nylon filter, carbon filter ,H14 HEPA filter

Filter efficiency: 99.99%@0.3um;

Air flow@initial pressure drop: 1200m3/h@150Pa

HEPA filter with Al frame, HV fiberglass paper, double AL guard mesh, double sides sealant gaskets

Household FFU air purifiers can be used in home interior, office, meeting room, business room, and museum exhibition room.
