- HWN Nylon Washable Filter Media: polyamide monofilament basketwork as filter material
- Submit Order

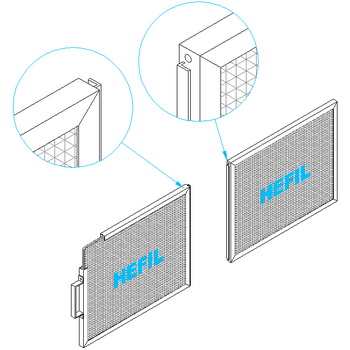

Frame: ultra-thin aluminum foil as the frame with handle
SpecificationFeatures
Frame structureApplication
| Model |
|
Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
Media Area (m2) |
| W×L×D (mm) | ||||
| HWF-500×500×15 | 500×500×15 | 4500 | 10 | 0.25 |
| HWF-500×1000/2×15 | 500×1000×15 | 9000 | 0.5 | |
| HWF-500×1500/3×15 | 500×1500×15 | 13500 | 0.75 |
◆Using import polyamide monofilament basketwork as filter material, with the characteristics of high wear strength, long service life and good combined effect
◆With High dust collection rate, low initial resistance and good dustproof performance, the filter can be washed repeatedly
◆Using ultra-thin aluminum foil as the frame which can be made into a interlinked group with handle. Replacement of the filter is safe, simple and convenient
◆With High dust collection rate, low initial resistance and good dustproof performance, the filter can be washed repeatedly
◆Using ultra-thin aluminum foil as the frame which can be made into a interlinked group with handle. Replacement of the filter is safe, simple and convenient
◆Using ultra-thin aluminum foil as the frame which can be made into a interlinked group with handle. Replacement of the filter is safe, simple and convenient
◆Suitable as pre-filter in ventilation systems of office buildings, conference rooms, hospitals, shopping malls, recreation centers, airports and other huge civil structure, as well as general factories and clean rooms.
