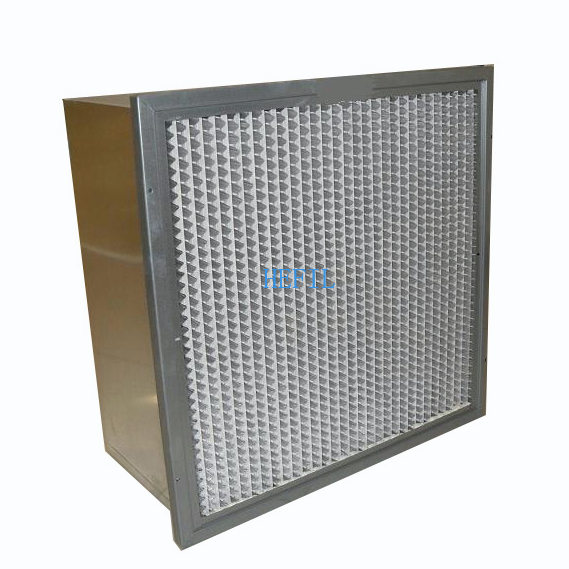

HTH Separator Air Filter
Media: superfine fiberglass
Frame: aluminum or paper foil, Sealant: Polyurethane or temperature resistant silica gel
Temperature: 90℃-300℃ in continuous service
H13: ≥0.3µm@99.99%
E10: ≥0.5µm@85%
F8: ≥1.0µm@80%
Submit Order
SpecificationFeatures Frame structureApplication
Model Dimensions Media Area (m2) Rated Air Flow (m3/h) Initial Pressure Drop (Pa)
W×H×D (mm) Standard High Capacity Standard High Capacity F8 H10 H13
HTH230 230×230×110 0.8 1.4 110 180 ≤85 ≤175 ≤235
HTH320 320×320×220 4.1 6.1 350 525
HTH484/10 484×484×220 9.6 14.4 1000 1500
HTH484/15 726×484×220 14.6 21.9 1500 2250
HTH484/20 968×484×220 19.5 29.2 2000 3000
HTH630/05 315×630×220 8.1 12.1 750 1200
HTH630/10 630×630×220 16.5 24.7 1500 2250
HTH630/15 945×630×220 24.9 37.3 2200 3300
HTH630/20 1260×630×220 33.4 50.1 3000 4500
HTH610/03 305×305×150 2.4 3.6 250 375
HTH610/05 305×610×150 5.0 7.5 500 750
HTH610/10 610×610×150 10.2 15.3 1000 1500
HTH610/15 915×610×150 15.4 23.1 1500 2250
HTH610/20 1220×610×150 20.6 30.9 2000 3000
HTH610/05X 305×610×292 10.1 15.1 1000 1500
HTH610/10X 610×610×292 20.9 31.3 2000 3000
HEFIL makes various other models of HTH filter not listed the above table. Please consult with us if you need.
◆High eff. H13: Trapping 99.99% or higher of 0.3μm particles
◆Sub-high eff. H10: Trapping 95% or higher of 0.3μm particles
◆Medium eff. F8: Trapping 80% or higher of 1.0μm particles
◆Adopt special folding machine for manufacturing
◆Using special glass fiber filter paper as the filter material
◆Using special aluminum foil or offset paper as separator
◆Each filter is through rigorous testing
Frame can be made of wood, aluminum alloy, galvanized steel sheet or stainless steel sheet


Suitable for electronics, biopharmaceutical industry, hospital, and the occasions required the high cleanliness terminal filtration.
